Invisi-Guard Clear Polycarbonate Window Slats

  • Unobstructed Customer View: Unlike steel bars, Invisi-Guard maximizes product visibility, enhancing customer engagement with approximately 95% light transmission*.
  • Exceptional Security: High-impact polycarbonate slats and a strong steel frame deter break-ins and vandalism.
  • Modern & Customizable Design: The sleek aesthetic complements your storefront and allows for colour customization.
  • Durable & Low Maintenance: Invisi-Guard requires minimal maintenance, only occasional cleaning, making it a cost-effective long-term solution.
Invisi-Guard-2024-08-06- (2)
Invisi-Guard-2024-08-06- (2)
Invisi-Guard-2024-08-06- (18)-2
Invisi-Guard-2024-08-06- (25)-2
Invisi-Guard-2024-08-06- (19)-2
Invisi-Guard-2024-08-06_ (18)
Invisi-Guard-2024-08-06_ (11)
Invisi-Guard-2024-08-06- (24)
Invisi-Guard-2024-08-06- (22)-2
Invisi-Guard-2024-08-06- (8)
Xpanda Invisi-Guard

Possible installation parameters/ limitation
Slat Size10mm x 50mm
Spacing100mm
Pitch150mm
OrientationHorizontal, Vertical
Weather ratingIndoor
FixingFace Fix, Sill Fix
ColourAny Dulux Powder-coating colour (although some do cost more than others)
MaterialSteel / Polycarbonate
Height CoverageUp to 3m
Width CoverageUp to 2.4m (join needed for wider)

Prioritize security without sacrificing customer experience.

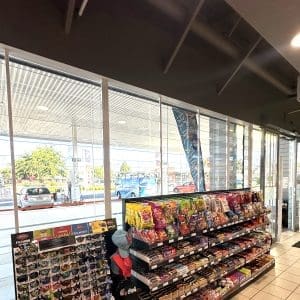

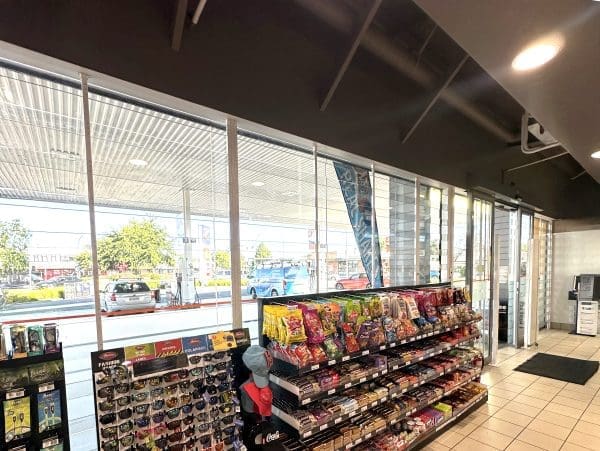

Introducing Invisi-Guard Clear Polycarbonate Window Slats, the innovative, revolutionary security barrier designed specifically for shop windows with the visual appeal you’ve been waiting for.

Unmatched Clarity & Customer Engagement:

Invisi-Guard features high-impact, 10mm thick polycarbonate slats housed within a sleek steel frame. This unique design allows for maximum light penetration, creating an open and inviting atmosphere for your customers. Unlike traditional steel bars, Invisi-Guard doesn’t obstruct customer’s view of your products, nor your view out of the store – fostering a more engaging shopping experience.

Superior Security & Peace of Mind:

Don’t be fooled by its transparency. Invisi-Guard offers exceptional security. The 10mm thick polycarbonate slats are virtually unbreakable, acting as a formidable deterrent against robbery and assaults.

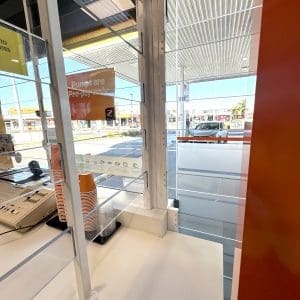

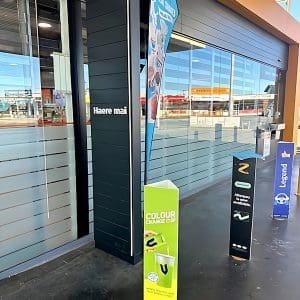

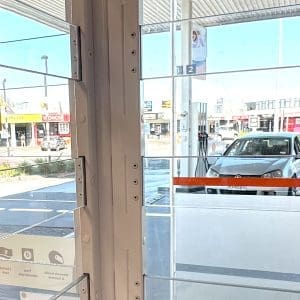

The slats pass through steel intermediate uprights with no visible fasteners on the outside. Uprights are attached top and bottom, and on the sides of the window frame. These upright members are slim profile with minimal bulkiness .

The slats are spaced vertically at 150mm (100mm gap) and horizontally have a maximum span of 1200mm between supports (ideal at 800mm), provides additional strength and stability.
(Windows bigger than this will have intermediate vertical steel supports mid-span)

Sleek Design & Customizable Appeal:

Invisi-Guard elevates the aesthetics of your storefront. The clear polycarbonate slats and slim steel frame create a modern and sophisticated look that complements any business style. Plus, you can customize the powder-coated steel frame either blend in nicely, or to perfectly match your brand with a wide range of Dulux powder coat colours.

Here’s why Invisi-Guard is the perfect security solution for your business:

  • Unobstructed Customer View: Unlike steel bars, Invisi-Guard maximizes product visibility, enhancing customer engagement with approximately 95% light transmission*.
  • Exceptional Security: High-impact polycarbonate slats and a strong steel frame deter break-ins and vandalism.
  • Modern & Customizable Design: The sleek aesthetic complements your storefront and allows for colour customization.
  • Durable & Low Maintenance: Invisi-Guard requires minimal maintenance, only occasional cleaning, making it a cost-effective long-term solution.

Upgrade your security without compromising on aesthetics. Contact Xpanda today to learn more about Invisi-Guard and how it can protect your business while creating a welcoming environment for your customers!

*Light transmission is derived from the polycarbonate spec sheet as 85%, but accounting for the space between slats the percentage is effectively 95%
** Effectiveness greatly enhanced by having more steel intermediate-uprights where possible.
*** Will usually be recommended in conjunction with security for your doorway.

This Comparison Table can be downloaded as a PDF Here

Should you choose Steel Bars, Mesh, or Polycarbonate?

This is a comparison chart for fixed security measures on windows and doors. For information on our expanding / retractable range see "Expanding Doors and Grilles" category. Ultimately our expert will present any options available when we visit to quote.

* Colour choice is within the Dulux Powder coat colour range.
** Possible if there is no other option but this is not recommended.
*** When combined with good locks and Anti-Jemmy strip.
Fixed Steel MeshDurabar fixed barsClear-Guard Polycarbonate SlatsInvisi-Guard Polycarbonate Slats
Cost$$$$$$$$
Frameless Glass DoorsNONONONO
Aluminium Framed Doors
Timber Framed Doors
Aluminium Framed Windows
Timber Framed Windows
Inward Opening First access door
Counter tops (Anti-Jump)
Emergency Exit
Colour choiceAny*Any*Any*Any*
Can be opened(With door)
Wide Spaces
Fully OutdoorOption **Option **
Stop VehicleNONONONO
Provide SecurityHigh ***HighMediumHigh
Ideal LocationsFire Exits,
Inward-opening first access.
All Windows.
All Doors with Frame
All Windows,
Counter Tops (anti-jump)
Residential and Commercial windows
(Not Shopfronts)
All Windows and shopfronts

Counter Tops (anti-jump)
